Grid Analyzer

The Distribution Substation Monitoring System for 13.8 kV – 400 V Substations, is a cutting-edge solution designed to revolutionize the way you monitor and manage your electrical substations. With real-time data, advanced analytics, and remote access capabilities, our system ensures the utmost reliability and efficiency, enabling you to make informed decisions promptly.

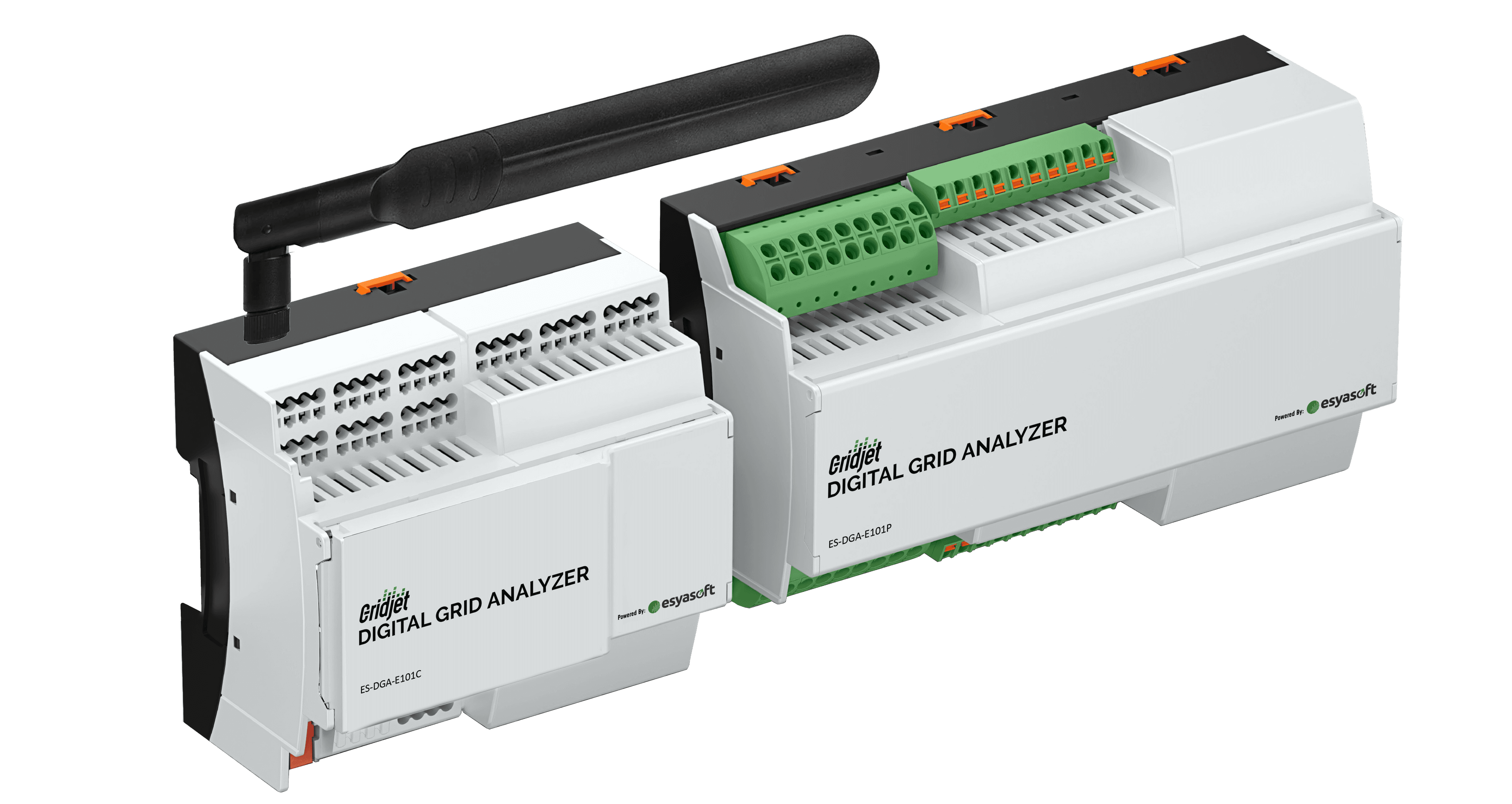

Grid Analyzer Picture1

Key Features

  • Real-time monitoring allows access to crucial data, including volatage, current, power factor and temperature to stay updated on substation performance
  • Automated Alerts and Alarms in case of abnormalities, enabling quick response and reducing downtime
  • Remote Accessibility to monitor substations from any location through a secure and user-friendly web interface or mobile app
  • Historical Data Analysis to analyze trends, predict potential issues, and optimize substation operations
  • Modular design of our system is easily scalable, allowing you to adapt it to your specific needs as your substation network grows
  • Secure Communication to prioritize data security and use encrypted communication protocol to safeguard your sensitive information
  • Integration Capabilities seamlessly incorporate our monitoring system with any SCADA or energy management systems

Communication Module

LTE FDD2600/2100/1800/900/800MHz EDGE/GPRS/GSM850/900/1800/1900MHz GPRS CLASS 10 GPRS CLASS 12
Bandwith LTE FDD
Download speed 100 Mbps, upload speed 50 Mbps
Bandwith DC-HSPA+
Download speed 42 Mbps, upload speed 5.76 Mbps
Bandwith HSPA+
Download speed 21 Mbps, upload speed 5.76 Mbps
Bandwith HSDPA
Download speed 7.2 Mbps
upload speed 5.76 Mbps
384 Kbps

Power Supply

Voltage Input
230 VAC L-N @ 50Hz
Current Input
1000A/0-200A / 100 mV Rogowski Coil (Integrator Circuit THD Inbuilt)

Serial Interface

LTE CAT 1 with Fall Back to 2G (1 Physical SIM); LTE Bands 3,7,20; RS485 Modbus(R)-RTU; Ethernet Modbus(R)-TCP, HTTP, BACnet-IP, SMTP, SNTP, SNMP; WIFI

Other products

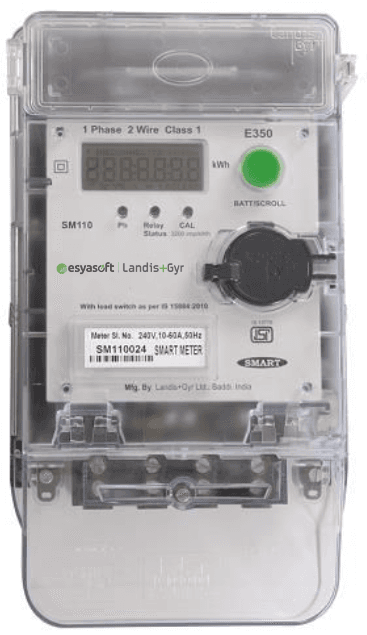

E350 SM110 Smart Meter
E350/SM110 (1P2W Smart Meter)

1 Phase Whole Current Smart Energy Meter with Import-Export Energy Measurement

View Product

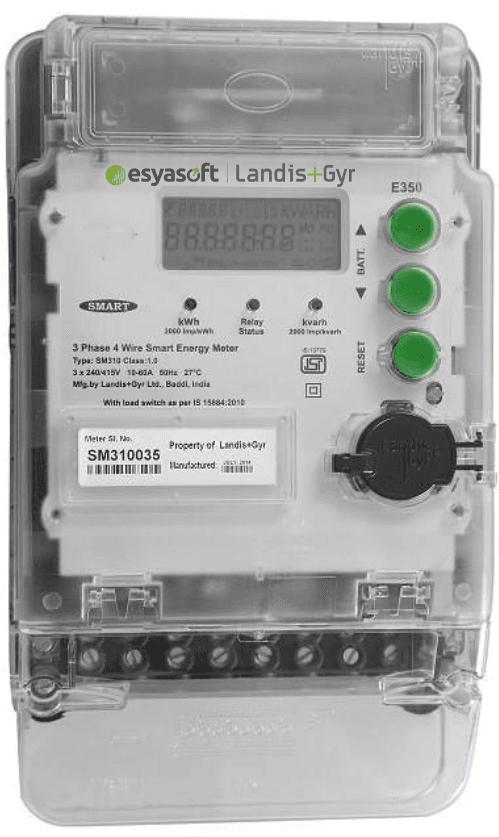

E350 SM310 Smart Meter
